Hyperspectral camera

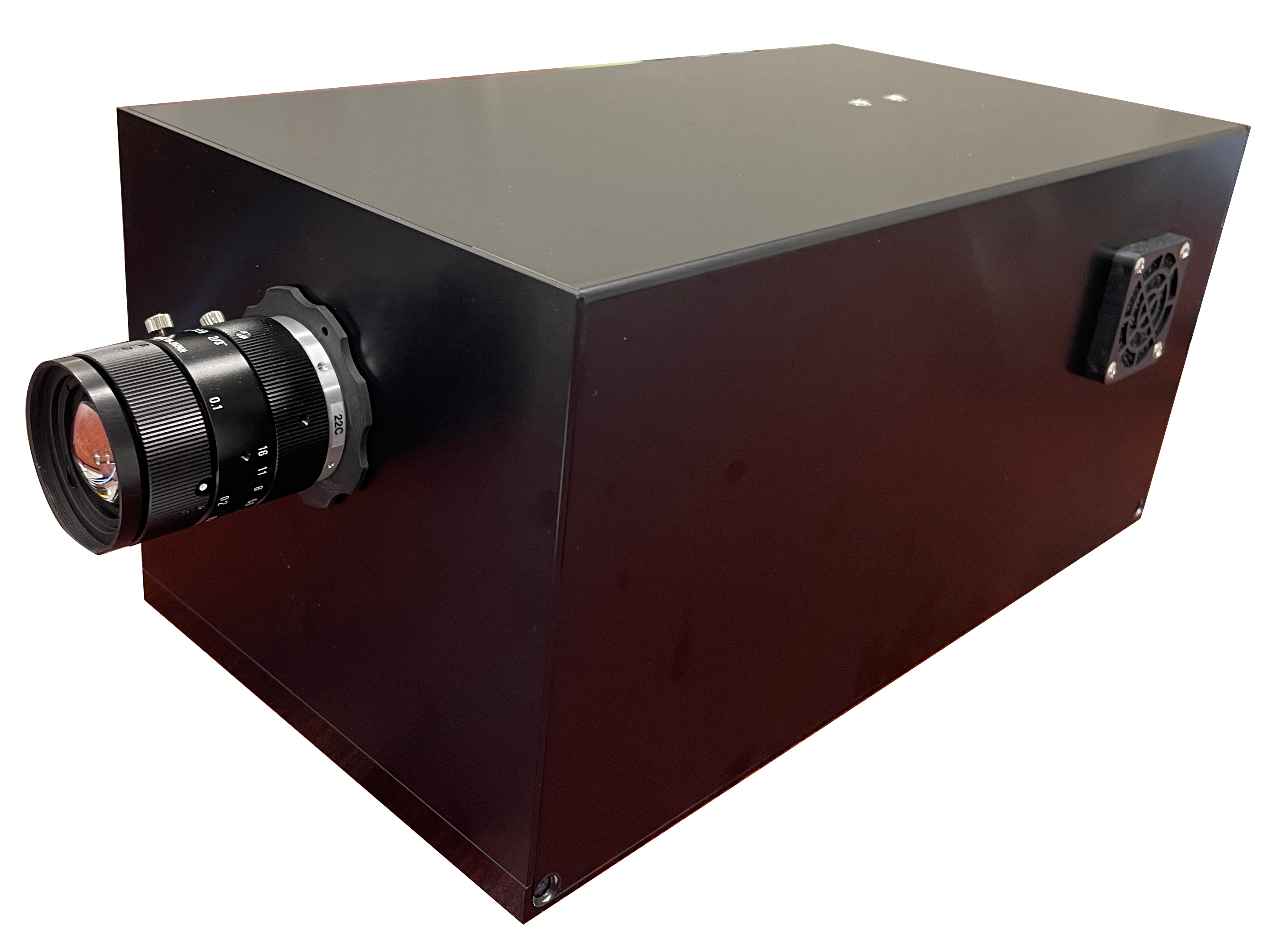

EBA Hyperspectral Camera Series

NH Series (Visible Light Type)

This is an imaging spectroscopy system capable of acquiring spectral information in the near-ultraviolet to near-infrared range (350 nm to 1100 nm) for each individual pixel in an image. (Wavelength resolution: 5 nm)

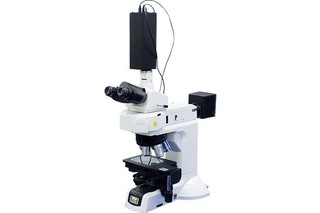

Equipped with a built-in spectral scanning system, it can capture spectral images while both the camera and the object remain stationary, making it highly versatile and portable for applications such as mounting on a microscope or outdoor measurements.

*We can customize our services to meet your specific needs.

Specifications

	NH-1	NH-3	NH-5	NH-7	NH-9	Custom Model
Image resolution	640 × 480 pixels (307,000 pixels)	752 × 480 pixels (360,000 pixels)	1024 × 768 pixels (786,000 pixels)	1280 × 1024 pixels (1.31 megapixels)	2048 × 1080 pixels (2.211 million pixels)	1 pixel to 4K resolution
Wavelength range	400 nm to 1000 nm	350 nm to 1,100 nm	350 nm to 1,100 nm	350 nm to 1,100 nm	350 nm to 1,100 nm	250 nm to 2.5 (13) μm
Wavelength resolution	5 nm	5 nm	5 nm	5 nm	5 nm	0.1 nm and up
Shooting speed	Capture speed: 3 settings (8 seconds / 12 seconds / 24 seconds) 300,000-pixel capture: 8.0 seconds (60 fps) 60,000-pixel capture: 1.6 seconds (60 fps)	Customizable exposure time: 360,000-pixel images: (Standard) 4.8 seconds / (Exposure) 0.1 ms–8 minutes; 300,000-pixel images: 4.0 seconds ; 60,000-pixel images: 0.8 seconds	Customizable capture speed: 790,000-pixel capture: (Standard) 6.4 seconds / (Exposure) 0.1 ms–13 minutes; 300,000-pixel capture: 2.4 seconds ; 60,000-pixel capture: 0.5 seconds	Customizable shooting speed: 1.31-megapixel shots: (Standard) 7.7 seconds / (Exposure) 0.1 ms–17 minutes; 300,000-pixel shots: 1.8 seconds ; 60,000-pixel shots: 0.4 seconds	Customizable shooting speed 2.21-megapixel shots: (Standard) 6.8 seconds / (Exposure) 0.1 ms–18 minutes 300 ,000-pixel shots: 0.8 seconds 60 ,000-pixel shots: 0.2 seconds	0.1 seconds or more
Number of data bits	10-bit	10-bit	10-bit	10-bit	12-bit	8–16 bits
Size	H 76.0 mm × W 72.4 mm × L 213 mm *Excluding protrusions	H 76.0 mm × W 72.4 mm × L 213 mm *Excluding protrusions	H 76.0 mm × W 72.4 mm × L 213 mm *Excluding protrusions	H 76.0 mm × W 72.4 mm × L 213 mm *Excluding protrusions	H 76.0 mm × W 72.4 mm × L 213 mm *Excluding protrusions	Please feel free to contact us
Lens mount	C-mount	C-mount	C-mount	C-mount	C-mount	Please feel free to contact us
Interface	1 USB 3.0 port, 1 USB 2.0 port	1 USB 3.0 port, 1 USB 2.0 port	1 USB 3.0 port, 1 USB 2.0 port	1 USB 3.0 port, 1 USB 2.0 port	1 USB 3.0 port, 1 USB 2.0 port	Please feel free to contact us

SIS Series (Near-Infrared Type)

SIS-IM (900 nm–1,700 nm)

SIS-I (900 nm–1,700 nm)

SIS-SWIR (up to 2500 nm)

This is an imaging spectroscopy system capable of acquiring spectral information in the near-infrared range (900 nm to 2,500 nm) for each individual pixel in an image.

Equipped with a built-in spectral scanning system, it can capture spectral images while both the camera and the object remain stationary, making it highly versatile and portable for applications such as mounting on a microscope or outdoor measurements.

This technology enables the evaluation of objects that are difficult to distinguish with the naked eye or a color camera, such as visualizing moisture distribution, sorting plastics, and separating ice from water or oil from water, as well as conducting component analysis.

Video Materials

Specifications

	SIS-IM	SIS-I	SIS-SWIR (2.5 μm)
Image resolution	1280 × 1024 pixels (1.31 million pixels)	400 × 320 pixels (128,000 pixels)	400 × 320 pixels (128,000 pixels)
Wavelength range	900 nm to 1,700 nm	900 nm to 1,700 nm	1300 nm to 2500 nm
Spectral resolution	4 nm	10 nm	Approximately 12 nm
Shooting speed	1.31 megapixels: (Standard) 14.2 seconds ; 0.65 megapixels: 7.1 seconds	128,000 pixels: (Standard) 4.0 seconds ; 64,000 pixels: 2.0 seconds; 13,000 pixels: 0.4 seconds	128,000 pixels: (Standard) 4.0 seconds ; 64,000 pixels: 2.0 seconds; 13,000 pixels: 0.4 seconds
Number of data bits	12-bit	12-bit	14-bit
Size	H 154.5 mm × W 140.2 mm × L 328 mm *Excluding protrusions	H 154.5 mm × W 140.2 mm × L 328 mm* (excluding protrusions)	H 140 mm × W 150 mm × L 300 mm (excluding protrusions )
Lens mount	C-mount	C-mount	C-mount
Interface	1 USB 3.0 port, 1 USB 2.0 port	2 USB 2.0 ports	2 USB 2.0 ports
Shooting Mode	Built-in spectrometer stage scanning system with 201-channel simultaneous measurement	Built-in spectral stage scanning system with 81-channel simultaneous measurement	Built-in spectral stage scanning system with 101-channel simultaneous measurement

Wide-band type

450 nm to 1,700 nm

SIS-V+NIR

This is an imaging spectroscopy system capable of acquiring a wide range of spectral information—from visible to near-infrared light (450 nm to 1,700 nm)—on a pixel-by-pixel basis.

This single unit covers the wavelength range previously divided between the NH series and the SIS-I, enabling evaluation of a wide range of targets.

Specifications

	SIS-V+NIR
Image resolution	1280 × 1024 pixels (1.31 million pixels)
Wavelength range	450 nm to 1,700 nm
Spectral resolution	4 nm
Shooting speed	1.31 megapixels: (Standard) 18 seconds; 650,000 pixels: 9 seconds
Number of data bits	12-bit
Size	140 mm (H) x 160 mm (W) x 320 mm ( L) *Excluding protrusions
Lens mount	C-mount
Interface	1 USB 3.0 port, 1 USB 2.0 port
Shooting Mode	Built-in spectral stage scanning system with 313-channel simultaneous measurement

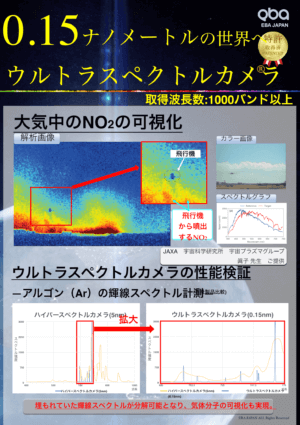

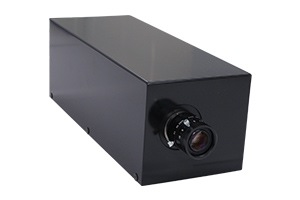

UltraSpectral Camera®

This model features a high wavelength resolution of 0.15 nm, surpassing that of hyperspectral cameras. It can visualize
changes and conditions—such as atmospheric NO₂—that cannot be detected with the wavelength resolution (5 nm) of standard models.

*Please contact us regarding specifications, as these are custom-made.
